Temperature & Pharmaceuticals

Under the term “pharmaceuticals”, all kind of materials and products are summarized such as drugs, medicines, bio-pharmaceuticals, API, research materials, human body samples or even medical devices. What they all have in common is that their properties and therefore their quality change with temperature – for example:

  • Proteins decompose depending on time and temperature - the higher the temperature, the faster they fall apart
  • Gel turns to liquid at high temperatures

Compared to food products, pharmaceuticals typically don’t change their smell and optical appearance when exposed to wrong temperatures. But they change their potency and their effectiveness. Therefore losing stability budget might be harmful to patient safety.

Executive Summary Temperature Monitoring

Download a summary on everything you need to know about temperature monitoring.

DOWNLOAD

Infosheet on Wireless Sensors

Download our infosheet on everything you need to know about using wireless sensors for temperature monitoring.

DOWNLOAD



Which products fall under the category of “temperature sensitive pharmaceutical products”?

Common regulations don't list all temperature sensitive products in the pharmaceutical and healthcare environment. When the “cold chain industry” started in the 1980, temperature sensitive pharmaceutical products typically referred to refrigerated products like vaccines or bio-pharmaceuticals. In addition to that, blood and blood products as well as research materials and human body samples require temperature monitoring, too. Since the 2015 revision of the EU GDP guidelines, API and room temperature products, such as small molecules and over-the-counter drugs, were included into the scope of temperature controlled logistics, too. Since the new regulation on medical devices came into force, medical devices which include some sort of an active pharmaceutical ingredient (e.g. coating) must as well be considered inside the scope of temperature controlled logistics.

Qualification & Mapping

All you need to know about qualification, validation & mapping

Temperature Calibration

All you need to know about the calibration of temperature sensors

GMP & GDP Compliance

All you need to know about GxP compliance in monitoring solutions

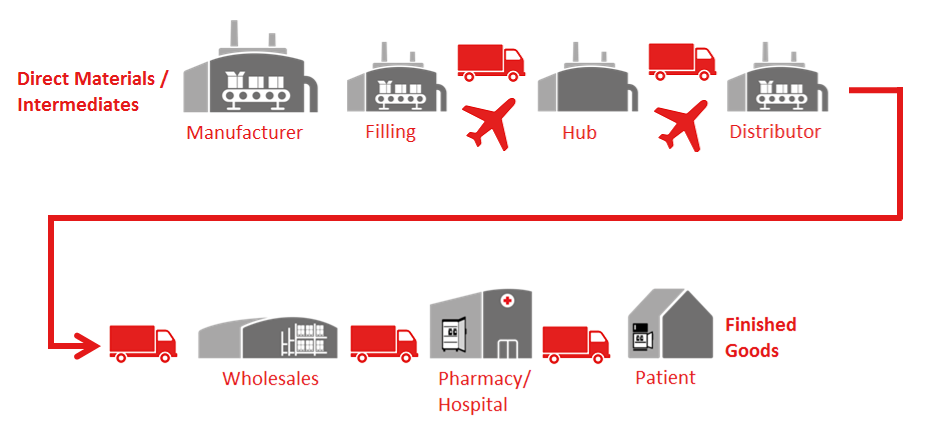

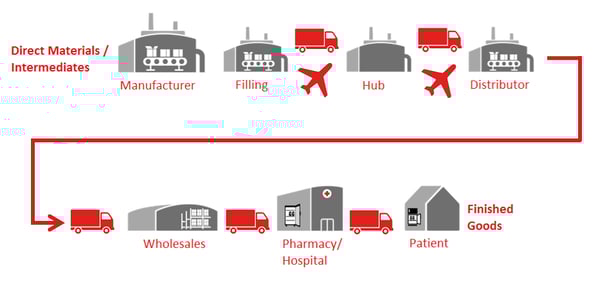

The Pharma Supply Chain

Temperature Monitoring along the the Pharma Supply ChainLike most supply chains of industrialized products, the pharma supply chain is complex and consists of multiple steps. Furthermore, the supply chain of every pharmaceutical product looks different and depends on the product complexity as well as the production region. While expensive products like genetically engineered drugs typically have a very short supply chain, low-price over-the-counter drugs like Aspirin have a much more complex supply chain with multiple steps between production and patient. What all pharma supply chains have in common is the distinction between the transportation of Active Product Ingredients (API) and finished packaged products. Lately, the scope of temperature data monitoring is increasingly including the last transportation mile to the pharmacy or even to the patient. Direct-to-Patient-Shipments (DtP) are becoming increasingly popular and important, especially with regards to clinical trials but also for personalized drugs.

How relevant is humidity for the pharma supply chain?

Humidity is relative to temperature and represents the amount of water present in the air. Humidity is highly relevant in the pharmaceutical production as long as the product is in its open form before primary packaging (i.e. liquid or powder). After primary packaging, the relative humidity typically loses its direct relevance to patient safety. It is nevertheless common to monitor relative humidity in warehouses to avoid negative impact on the labeling and packaging (i.e. paper, cardboard). In most shipments however, the only quality relevant parameter is temperature. Data loggers therefore usually don't monitor Humidity inside the transportation container.

Transportation Conditions vs. Storage Conditions

Although every pharmaceutical product has an individual stability budget, they are clustered into standard temperature data range groups for storage and for transportation. As storage conditions we typically see the temperature ranges -196°C, -80°C, -20°C, 2-8°C and 15-25°C. As transportation conditions the labels are "liquid nitrogen" (-196°C), "dry-ice" (-78°C), 2-8°C and 15-25°C. The storage condition “frozen” (-20°C) is not very often seen in transportation for mainly two reasons. Frozen products are in most cases not sensitive to ultra-low temperature. It is therefore cheaper to use dry-ice than to use expensive and complex compression cooling.



The Regulatory Environment of Pharma Companies

If a company wants to research, produce, store, transport or sell pharmaceutical products, they are subject to regulatory requirements. The laws and regulations are specific to each country and typically include a national or international authority like the FDA (in the United States), EU (in Europe) or Swissmedic (in Switzerland), all coordinated by the ICH (International Council for Harmonisation of Technical Requirements for Pharmaceuticals for Human Use).

In addition to official regulations, there are a number of important associations issuing guidance documents supporting and detailing the regulations and their application in specific situations. Some of the most influential organisations relevant to the pharmaceutical supply chain industry are the ISPE (International Society for Pharmaceutical Engineering), the USP (United States Pharmacopeia), the PDA (Parental Drug Association) and the WHO (World Health Organisation). The regulatory framework is therefore a living organism which changes almost daily with new laws becoming effective and new guidance documents being published.

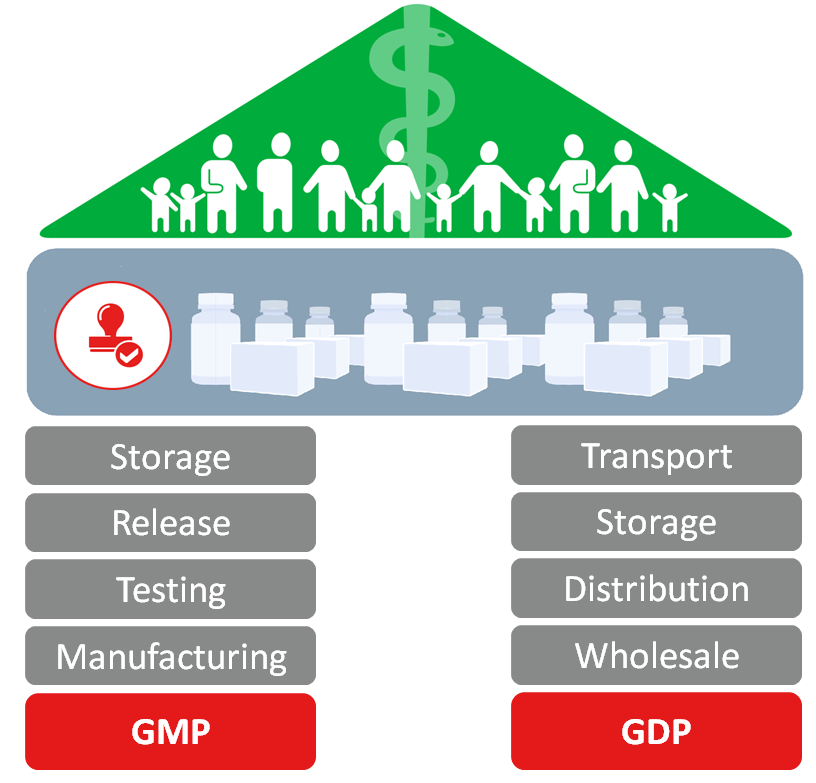

Temperature Monitoring application areas along the GMP GDP Guidelines

GMP vs. GDP – what are the differences?

From a drug supply chain perspective, the cornerstones of the regulatory framework are the Good Manufacturing Practice system (GMP) and the Good Distribution Practice system (GDP) – or often jointly referred to as GxP. While GMP lays its focus on activities around manufacturing (including testing, release & storage), GDP focuses on the distribution including transportation, storage & wholesale of pharmaceuticals products. Both, GMP and GDP aim to increase public health by ensuring the product quality.

Compliance in the context of the pharmaceutical supply chain

In a nutshell: if you store or transport pharmaceutical products and want to comply to GMP and GDP guidelines you must:

The same applies to the transportation but with more focus on the requirements of fleets, containers, boxes and single-use equipment.

All about Monitoring Solutions

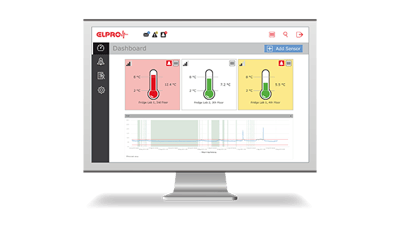

The history of monitoring solutions started more than 30 years ago with Autonomous Temperature Data loggers – like for example ELPRO’s legendary HAMSTER. Driven by a battery, the data logger recorded temperature and humidity measurements and was able to transmit its internal memory to the analysis software through an interface. Since the autonomous temperature data loggers were compliant to the Hazard Analysis and Critical Control Point (HACCP) standards, the food and beverage industry as well as heating, ventilation, and air conditioning companies (HVAC) used early applications of autonomous data loggers. Soon after that the pharmaceutical industry started to monitor refrigerators and cold rooms, too. Temperature data loggers were firstly used for laboratories and production facilities. Later on storage and transportation facilities were added to the scope.

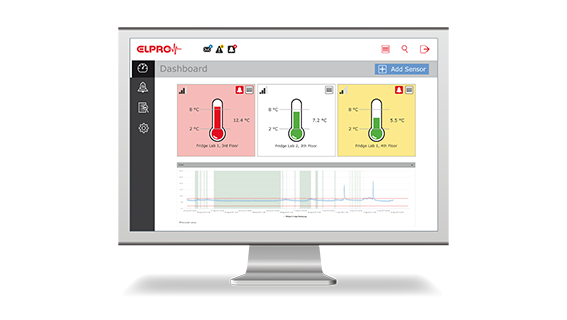

ELPROCloud_Screen_StarterKit_190917_web-1

Key Functions of Temperature Monitoring Systems

A monitoring system typically consists of a sensor conducting measurements of temperature or other environmental data in a defined interval. The sensor transmits the values wired or wireless to a data logger, which acts as a communication bridge. The Software collects the values in real-time in order to perform the following functions:

  • assessing the data
  • triggering warnings and alarms
  • facilitating evaluation and acknowledgement
  • performing regular reporting
  • archiving the data

What is the difference between Building Management Systems and Temperature Monitoring Systems?

In any production environment and in many warehouses, state of the art Building Management Solutions (BMS) are installed to conducting measurements of temperature and environmental data like humidity, as well as giving commands to the air conditioning system. What is the difference to an independent Monitoring Solution? Other than Building Management Solutions, Monitoring Solutions never have control loops but instead are fully independent from any control mechanism. The validated independence of a Monitoring Solution is an important requirement of any GxP-guideline.

Parameters and Sensors

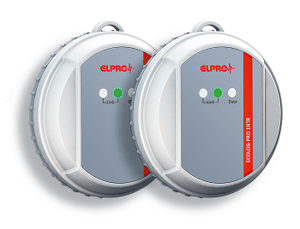

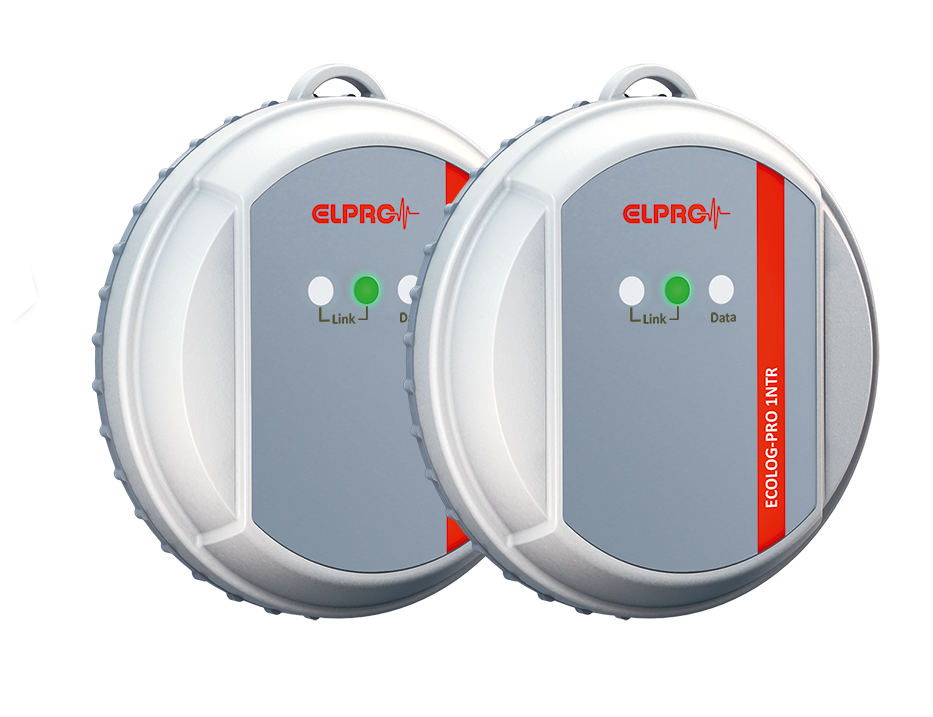

Temperature Monitoring sensors of ELPRO Cloud

Research, production, testing and filling of pharmaceutical products are often performed in a clean room environment in which various environmental parameters such as temperature, humidity, pressure, pressure differentials, C02 and particles play an important role regarding the quality of the product. Therefore, monitoring solutions must be open to process, evaluate and display all kind of environmental parameters. As soon as a product is filled into a bottle, blister, vial or syringe, temperature is the only relevant environmental data which is important to the quality of the product.

Placement of sensors

GMP and GDP guidelines require a qualification of the storage facility, refrigerator or transportation box. The most important part of the qualification is the thermal mapping process identifying the hottest and the coldest spot. Depending on the specific situation and the requirements, the right sensor can be chosen and placed. Depending on the scenario a mix between wired sensors (e.g. for 4to20mA transmitters) or wireless sensors (e.g. temperature and humidity) can be chosen.

Would you like to know more about the differences between wired and wireless sensors? Download our infosheet on everything you need to know about using wireless sensors for temperature monitoring.

Get your Infosheet on Wireless Sensors

Technologies of Temperature Measurements

To conduct temperature measurements electronically, there are different measurement technologies available – each of them having their advantages and disadvantages.

Thermocouples

  • Physical Principle: Two different electrical conductors (bi-metal) changing resistance with temperature.
  • Typical Application: Extreme temperatures (steel and iron industry)
  • Advantages: Lowest cost
  • Disadvantages: Drift over time

Negative Temperature Coefficient (NTC)

  • Physical Principle: resistance decreases as temperature rises
  • Typical Application: -30° to +70°C in internal or external sensors
  • Advantages: Low cost & low energy, very stable over time
  • Disadvantages: Limited temperature range of each type

Digital Sensor

  • Physical Principle: Electronic microchip measuring & delivering a digital temperature value
  • Typical Application: -30° to +70°C in internal sensors
  • Advantages: Low cost & low energy, very stable over time
  • Disadvantages: Limited temperature range of each type, internal sensors only

Positive Temperature Coefficient (PTC)

  • Physical Principle: resistance increases as temperature rises
  • Typical Application: -200° to +200°C in external sensors
  • Advantages: High accuracy, very stable over time, wide measuring range
  • Disadvantages: High cost

Thermal Reaction Time

In a storage facility (i.e. a refrigerator) air temperature will change very fast through the opening and closing of the door. The thermal reaction time (Tau90) measures the time it takes to adjust to 90% of the temperature change. In other words: if a door of the refrigerator (5°C) is open, it takes a lot of time until the temperature is adjusted to the ambient temperature (20°C). Since temperature sensors have a very small thermal mass, they immediately change temperature. But pharmaceutical products are normally either well packaged or have significant thermal mass, meaning that the core temperature of the products will adjust significantly slower. This effect is called the thermal reaction time. Depending on the thermal mass of the pharmaceutical product and the packaging this might be anytime between 15 minutes to more than one hour. To simulate this effect, thermal dampers (such as glycol bottles) or electronic damping mechanisms are used.

Technologies of Humidity Measurements

Humidity is relative to temperature. Relative humidity is a function of the ambient temperature and the water vapor pressure in the air. Humidity sensors use the dependency of the relative humidity and the amount of moisture pressure inside the sensing element as a physical measurement principle. For electronic measurement, there are two different technologies available – each of them having their advantages and disadvantages:

Conductivity (Electrolytic)

  • Physical Principle: Tubes changing capillary height with relative humidity, therefore electrolyte changing conductance with relative humidity
  • Typical Application: Incubators with high humidity, Clean rooms (due to high accuracy & less sensitivity to clogging*)
  • Advantages: Very high accuracy between 5 and 95% rH (relative humidity), good accuracy also in high-moisture environment (>95% rH), less vulnerable to clogging of sensing element (due to air pollution), minimal drift over time
  • Disadvantages: Complex construction with many manufacturing steps (therefore expensive), sensitive to shock and vibration (due to capillary tubes)

*Clean Rooms have by definition very clean air with few particles only. However they are regularly disinfected with different types of gases. Those gases may cause clogging of the humidity sensor (resulting in drift = losing measurement accuracy over time).

Capacitive

  • Physical Principle: Plate condenser changing capacity with relative humidity
  • Typical Application: Warehouses and storage facilities, Trucks, transport boxes and containers
  • Advantages: High accuracy between 5 and 95% rH (relative humidity), simple and cheap to build (low price), not sensitive to vibration & shock (can also be used for transport monitoring)
  • Disadvantages: More vulnerable to clogging of sensing element (due to air pollution), small drift over time, yearly exchange of sensor might be needed depending on the environment
