Temperature Data Logger Monitoring Solutions

From multi- and single-use USB temperature data loggers to real-time mobile IoT and wireless Bluetooth® (BLE) functionality, ELPRO has a solution to fit any cold supply chain application for pharma, life science, healthcare and logistics where regulated temperature control is required for quality outcomes and compliance.

Request Demo

Temperature Data Logger Monitoring Solutions

From multi- and single-use USB temperature data loggers to real-time mobile IoT and wireless Bluetooth® (BLE) functionality, ELPRO has a solution to fit any cold supply chain application for pharma, life science, healthcare and logistics where regulated temperature control is required for quality outcomes and compliance.

Temperature Data Loggers for Monitoring Environmental Conditions



ELPRO temperature data logger solutions are trusted to monitor environmental conditions in the pharmaceutical, life science, healthcare or logistic industries where strict temperature control is required for quality and compliance. ELPRO LIBERO brand single- and multi-use data loggers are used by the world's leading pharma and logistics companies to monitor temperature and humidity data in cold supply chain logistics.





USB Interface Temperature Data Loggers for your Cold Chain

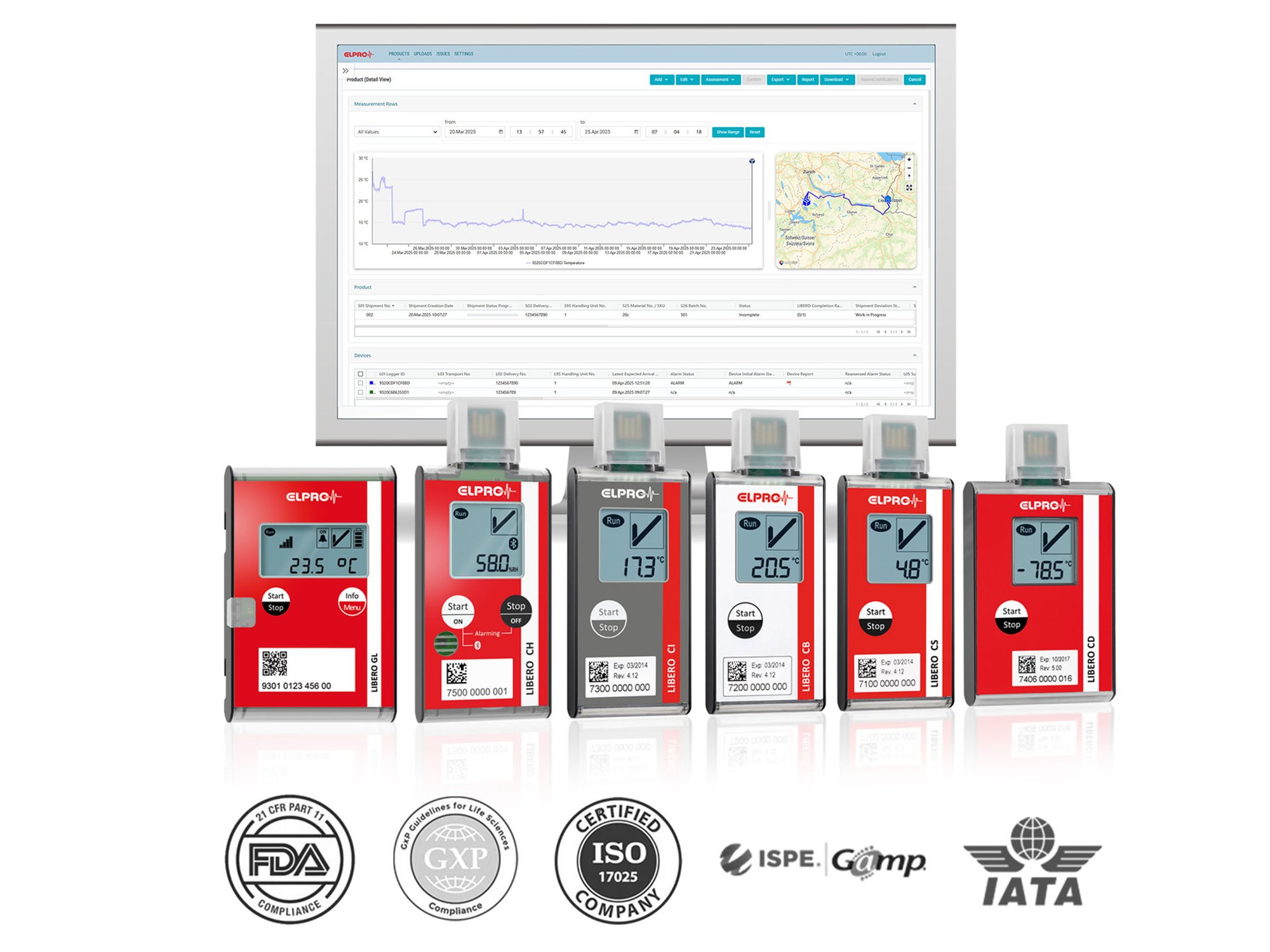

USB temperature data loggers are used for numerous transport and storage applications where continuous monitoring is used to prove compliance and plays a vital role in quality-controlled operations. USB PDF Loggers record measurements at a defined interval. The data is then stored in the deviceÔÇÖs memory until read out by plugging the USB into a computer. From there a PDF report is generated for filing, printing or storing in a central database, such as liberoMANAGER, for archiving. USB temperature loggers can monitor thousands of cold chain shipments the simplest, fastest way possible without installation or configuration. ELPRO's proven PDF data logger family covers the full range of life science monitoring products in-transit, including refrigerated, CRT, dry-ice, humidity and cryogenics.




Popular Temperature Data Logger Types

Explore these popular types of temperature and RH data loggers below to determine the best fit for your temperature-controlled cold supply chain application:



  1. Single Use Temperature Data Logger
    These temperature data measurement devices feature a USB interface, alarm notifications, stability budget management, internal sensor, and a temperature measurement range of +2 ┬░C to +8 ┬░C or +15 ┬░C to +25 ┬░C.
  2. Multi-Use Temperature Data Logger
    Multi-level loggers are often called "multi-use." They are often used in clinical trials where temperature must be recorded at several stops or depots in the cold supply chain to prove the product has remained within a stability budget the entire journey, from end to end. These devices can feature an internal or external sensor (probe) and are often used in temperature mapping for GxP compliance, or monitoring ULT freezers in a lab, incubators, or temperature and humidity in smaller storage rooms.
  3. Cryogenic/Dry Ice Temperature Data Logger
    To measure and control ultra-low temperatures for cold chain product transported in a cryogenic shipper with LN2; dry ice; or stored in a ULT freezer, you often need a multi-use device such as the LIBERO CD or LIBERO CE. Depending on the application and logger type, these devices can be used with or without an external sensor.
  4. Bluetooth® (BLE) Temperature Data Logger
    These devices rely on wireless, Bluetooth® Low Energy (BLE) technology to enable hands-free data readout and upload or stability statistics, thus eliminating the leading cause of poor data quality during cold chain shipments: human error. In devices such as the LIBERO, keeps recording (or "buffers") temperature data if wireless signals get temporarily lost. Once the signal is reestablished, all the "buffered" raw data points are uploaded and potential data gaps in reporting are thus eliminated.
  5. Humidity (RH) and Temperature Data Loggers
    Ideal for monitoring environmental conditions in incubators, storage rooms, warehouses and growing chambers, these data logger are typically multi-use and can be configured to measure multiple temperature ranges.
  6. Real-Time Mobile IoT Data Logger
    The ability to take proactive steps to ensure safe and effective delivery of highly valuable medicines and vaccines is one of the key benefits to utilizing a real-time temperature data logger. These devices typically measure other parameters, such as CO2, light and shock. They use signal from various mobile IoT networks to inform control towers of the shipment's GPS location and environmental conditions.

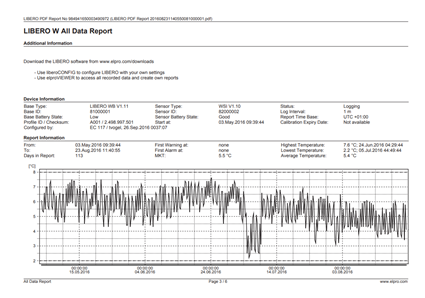

Patented Temperature and Humidity Data PDF Reports



One of the unique aspects of the ELPRO temperature data logger is the patented PDF reports that are generated from the device. ELPRO maintains a patent on PDF reports that not only provide the statistical information, but also provide all the raw data points on the same file. This is a huge efficiency and time-saving benefit to users because everything they need is on one file and it eliminates the need to store, access and archive multiple, separate files, e.g. one file for the statistics, one file for the raw data, and so on.



report

Single Use
USB Temperatur-Datenlogger

LIBERO CB

PDF Logger with internal
NTC probe



Measurement range: -30 ┬░C to +70 ┬░C

Technical Specifications

  • Single use
  • PDF Report: Alarm statistics and graph
  • Alarm: 2 levels
  • Alarm on MKT
  • GAMP5-validated
  • FDA 21 CFR 11 compliant
  • Free calibration certificate
  • Free demo analysis software: elproVIEWER
Order Now

LIBERO CS

Multi-level PDF Logger with
internal NTC probe



Measurement range: -30 ┬░C to +70 ┬░C

Technical Specifications

  • Single use
  • PDF Report: Alarm statistics and graph
  • Alarm: 8 levels
  • Alarm on MKT
  • GAMP5-validated
  • FDA 21 CFR 11 compliant
  • Free calibration certificate
  • Free demo analysis software: elproVIEWER
Order Now

LIBERO CD

PDF Logger with internal probe for direct placement in dry ice



Measurement range: -95 ┬░C to +50 ┬░C

Technical Specifications

  • Single use
  • PDF Report: Alarm statistics and graph
  • Alarm: 8 levels
  • Alarm on MKT
  • GAMP5-validated
  • FDA 21 CFR 11 compliant
  • Free calibration certificate
  • Free demo analysis software: elproVIEWER
Order Now

Multiple Use
USB Temperature Data Loggers

LIBERO CE

PDF Logger with USB and Bluetooth® Low Energy (BLE) interface for external Pt100 temperature probe



Measurement range: -200 ┬░C to +400 ┬░C

Technical Specifications



  • Parameters: Temperature
  • Multiple use
  • PDF Report: Alarm statistics and graph
  • Alarm: 8 temperature zones
  • Read out: USB or Bluetooth┬«
  • Lifetime: 14 months - 2 years
  • Battery: Button cell (IATA compliant)
  • GAMP5-validated
  • FDA 21 CFR 11 compliant
  • Free calibration certificate
  • App: iOS and Android
Order Now

LIBERO CL

PDF Logger with USB and Bluetooth® Low Energy (BLE) interface with internal temperature probe



Measurement range: -30 ┬░C to +70 ┬░C

Technical Specifications

  • Parameters: Temperature
  • Multiple use
  • PDF Report: Alarm statistics and graph
  • Alarm: 8 temperature zones
  • Read out: USB or Bluetooth┬«
  • Lifetime: 14 months - 2 years
  • Battery: Button cell (IATA compliant)
  • GAMP5-validated
  • FDA 21 CFR 11 compliant
  • Free calibration certificate
  • App: iOS and Android
Order Now

LIBERO CH

PDF Logger with USB and Bluetooth® Low Energy (BLE) interface with internal temperature probe



Measurement range: -30 ┬░C to +70 ┬░C, 0% RH to 100% RH

Technical Specifications

  • Parameters: Temperature, Humidity
  • Multiple use
  • PDF Report: Alarm statistics and graph
  • Alarm: 8 temperature zones, 2 humidity thresholds
  • Read out: USB or Bluetooth┬«
  • Lifetime: 14 months - 2 years
  • Battery: Button cell (IATA compliant)
  • GAMP5-validated
  • FDA 21 CFR 11 compliant
  • Free calibration certificate
  • App: iOS and Android
Order Now

Quality and Compliance is in Our DNA



ELPRO has 30+ years of designing monitoring solutions for the life sciences industry. LIBERO Gx not only provides the supply chain visibility and product security you need, but provides assurance and certainty in a highly validated, compliant solution.



Icon_GAMP5_red_white

GAMP® 5 validated hardware and software

Icon_21CFR11_red_white_rgb

21 CFR compliant

Icon_Communication_02_red_white_rgb

User management

Icon_AuditTrail_red_white_rgb

Audit trail

Icon_ISO_17025_red_white_rgb

ISO 17025 calibrated sensors

Icon_SatisfactionGuarenteed_red_white_rgb

Satisfaction Guarantee

See how quality is embedded into each and every process at ELPRO as we develop, test and supply robust, compliant monitoring solutions to you. Watch the video now.
