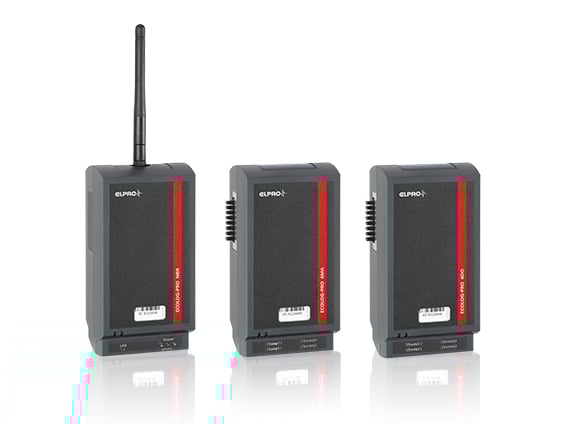

ECOLOG-PRO wired - Scalable monitoring system for critical spaces 🌡️ ELPRO

Designed for GxP-regulated environments, the ECOLOG-PRO wired system is a proven, scalable solution for continuous monitoring of critical equipment and spaces. Fully integrated with elproMONITOR software, the system supports temperature, humidity and additional sensor types with secure, uninterrupted data collection. Ideal for facilities with complex infrastructure or strict compliance needs, ECOLOG-PRO wired delivers 24/7 oversight backed by on-site calibration and validation services.

ECOLOG-PRO wired is perfect to monitor:

GMP production areas
Laboratories and clean rooms
Temperature-controlled storage rooms
Incubators, fridges and freezers
Complex multi-room installations

ECOLOG-PRO and elproMONITOR Solutions

Watch this short video to get an overview of ECOLOG Unlimited capabilities, elproMONITOR software, and various hardware options available to you.

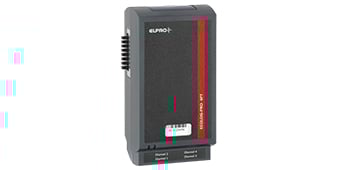

ECOLOG-PRO 4PT

Temperature (Pt100 sensors)

Connects Pt100 sensors

4 inputs for external Pt100 temperature probes

Temperature range: -200 °C to +200 °C

Report & Software: elproMONITOR

Measurement interval:
1, 2, 3, 5, 10, 15, 20, 30, 60 minutes;
different intervals per sensor possible

Measurements per module: 10,000

Technical specification
Download here

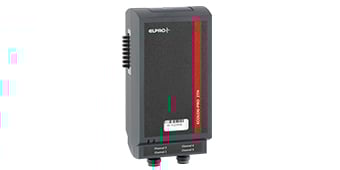

ECOLOG-PRO 2TH

Temperature & Humidity

Connects temperature and humidity sensors

2 inputs for T/RH combination sensors

Temperature range: -20 °C to +80 °C
Humidity range: 0% RH to 100% RH

Report & Software: elproMONITOR

Measurement interval:
1, 2, 3, 5, 10, 15, 20, 30, 60 minutes;
different intervals per sensor possible

Measurements per module: 10,000

Technical specification
Download here

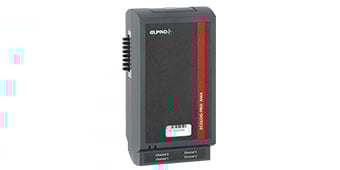

ECOLOG-PRO 4MA

Analog Input (4-20 mA)

Integrates third-party sensors with 4-20 mA outputs

4 inputs for 4–20 mA signals

Temp/Hum range: depending on external sensor

Report & Software: elproMONITOR

Measurement interval:
1, 2, 3, 5, 10, 15, 20, 30, 60 minutes;
different intervals per sensor possible

Measurements per module: 10,000

Technical specification
Download here

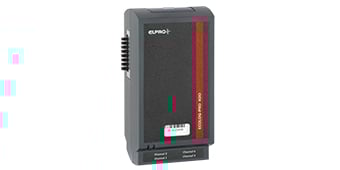

ECOLOG-PRO 4DO

Digital Outputs

For alarm forwarding to visual/audible systems

4 contact outputs (NO/NC toggle switches)

Report & Software: elproMONITOR

Measurement interval:
1, 2, 3, 5, 10, 15, 20, 30, 60 minutes;
different intervals per sensor possible

Measurements per module: 10,000

Technical specification
Download here

Monitoring Solution

Scalable, Secure Monitoring Across Your Operation

Flexible on premise or cloud server set-up and configuration
Powerful management from 20 up to 2,000+ measurement points
Secure API integration into your ERP or IT infrastructure
Superior global real-time visibility

Trusted in thousands of cleanrooms, production facilities, laboratories, research universities, pharmacies, healthcare facilities and warehouses worldwide, the elproMONITOR database is a proven solution to continuously monitor sensitive products, equipment and facilities to safeguard your GMP/GDP compliant environments.

elproMONITOR SOFTWARE

ELPRO Services

Compliance Made Easier

Navigating global regulations and standards can be complex—but with expertise, it doesn’t have to be. Comprehensive solutions are provided to keep companies compliant and prepared for upcoming audits, ensuring smooth operations worldwide at all times. The complexity is handled, allowing focus on what matters most—your success.

It can monitor temperature (including cryogenic conditions), relative humidity, and analog signals such as pressure, CO₂, and differential pressure using standard 4–20 mA transmitters.

Yes. The system is validated to GAMP® 5, compliant with FDA 21 CFR Part 11, and is supplied with validation and calibration certificates for audit readiness.

It is widely used in pharmaceutical production, biotech labs, clean rooms, research facilities, and healthcare storage environments that require uninterrupted data monitoring.

The system is highly scalable, supporting anywhere from 20 to over 2,000 measurement points across multiple rooms or facilities.

ECOLOG-PRO wired modules are AC-powered via a central communication module (ECOLOG-PRO NBR), ensuring constant operation without reliance on batteries.

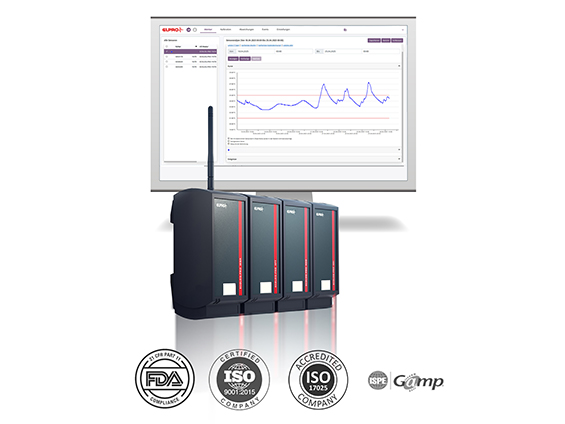

ECOLOG-PRO wired connects to elproMONITOR—ELPRO’s validated, on-premise monitoring software for centralized data access, audit trails, and reporting.

Yes. You can configure thresholds for each sensor, and the digital output module (4DO) enables real-time alarm forwarding based on your specific risk profiles.

ELPRO offers on-site calibration services and provides calibration certificates for all ECOLOG-PRO modules and connected sensors, supporting full GxP documentation.

Yes. ECOLOG-PRO wired is modular and designed for growth. You can add new modules and sensor types as your monitoring needs evolve.

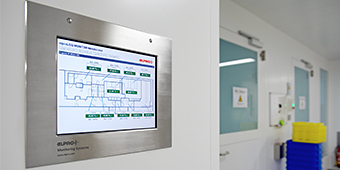

Central Monitoring for Reliable, Scalable Facility Monitoring

ECOLOG-PRO and elproMONITOR Solutions

Powered Performance for Complex Monitoring Environments

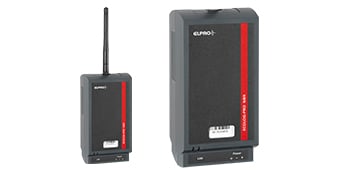

Communication and Power Module

Connects all measurement modules to elproMONITOR software

Temperature (Pt100 sensors)

Connects Pt100 sensors

Temperature & Humidity

Connects temperature and humidity sensors

Analog Input (4-20 mA)

Integrates third-party sensors with 4-20 mA outputs

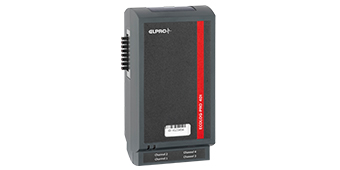

Digital Input

Connects dry contacts or other devices

Digital Outputs

For alarm forwarding to visual/audible systems

Why you'll love it

Reliable Wired Connectivity

Scalable System

Continuous Power Supply

GxP-Compliant Solution

Flexible Sensor Configuration

GxP Services

Scalable, Secure Monitoring Across Your Operation

New Level of Quality and Product Safety

Compliance Made Easier

These Products are Used in the Following Applications

Production & Cleanroom

Warehouse & Cold Room

Lab & Equipment

Museum

Food

Cosmetics

Do You Need a Customized Quote?

What Else Would You Like to Know About ELPRO's ECOLOG-PRO Wired Solution?

What types of parameters can ECOLOG-PRO wired monitor?

Is ECOLOG-PRO wired GxP-compliant?

What industries use ECOLOG-PRO wired?

How many measurement points can the system support?

How is the system powered?

What software is used with ECOLOG-PRO wired?

Can I customize alarm settings?

How is calibration handled?

Can I expand my system later as my facility grows?
